Product No |
LZ7023D-1.6-21 |
Size(L*W*H) |
28*15*14.2mm |
Number of Positions |
2 |
Gender |
Plug (Female) |
Pitch |
5.46 mm |
Connector Mounting Type |
Cable Mount / Free Hanging |
Termination Style |
Crimp |
Wire Gauge |
14-20 AWG |
Color |
Gray |
Packaging |
Bulk |
Application |
Wire to Wire |
Attachment Hole Diameter |
1.6 mm |
Contact Current Rating (A) |
13 A |
Housing Material |
Polyamide (PA) |
Ingress Protection |
IP68, IP6K9K |
Locking Mechanism |
Integrated in Housing |
Material |
Plastic |
Operating Temperature |
-67°F (-55°C) to +257°F (+125°C) |
Mounting Angle |
Straight |
Number of Rows |
1 Row |
Voltage Rating |
250 V |
Product No |
LZ7023D-1.6-11 |
Size(L*W*H):42*17*17mm |
42*17*17mm |
Number of Positions |
2 |
Gender |
Gender: Receptacle (Male) |
Pitch |
5.46 mm |
Connector Mounting Type |
Cable Mount / Free Hanging |
Termination Style |
Crimp |
Wire Gauge |
14-20 AWG |
Color |
Gray |
Packaging |
Bulk |
Application |
Wire to Wire |
Attachment Hole Diameter |
1.6 mm |
Contact Current Rating (A) |
13 A |
Housing Material |
Polyamide (PA) |
Ingress Protection |
IP68, IP6K9K |
Locking Mechanism |
Integrated in Housing |
Material |
Plastic |
Operating Temperature |
-67°F (-55°C) to +257°F (+125°C) |
Mounting Angle |
Straight |
Number of Rows |
1 Row |
Voltage Rating |
250 V |
Product No |
LZ7023Y-1-11 |
Size(L*W*H) |
39.1*16.7*16.2mm |
Number of Positions |
2 |
Gender |
Receptacle (Male) |
Pitch |
4.19 mm |
Connector Mounting Type |
Cable Mount / Free Hanging |
Contact Type |
Without Pin Contacts |
Wire Gauge |
16-20 AWG |
Color |
Gray |
Attachment Hole Diameter |
1.6 mm |
Contact Current Rating (A) |
7.5 A |
Housing Material |
Plastic |
Ingress Protection |
IP68, IP6K9K |
Locking Mechanism |
Integrated in Housing |
Material |
Plastic |
Operating Temperature |
-67°F (-55°C) to +257°F (+125°C) |
Mounting Angle |
Straight |
Number of Rows |
1 Row |
Voltage Rating |
250 V |
Product No |
LZ7023Y-1-21 |
Size(L*W*H) |
27.7*12.1*7.2mm |
Number of Positions |
2 |
Gender |
Plug (Female) |
Pitch |
4.19 mm |
Connector Mounting Type |
Cable Mount / Free Hanging |
Contact Type |
Without Pin Contacts |
Wire Gauge |
16-20 AWG |
Color |
Gray |
Attachment Hole Diameter |
1.6 mm |
Contact Current Rating (A) |
7.5 A |
Housing Material |
Plastic |
Ingress Protection |
IP68, IP6K9K |
Locking Mechanism |
Integrated in Housing |
Material |
Plastic |
Operating Temperature |
-67°F (-55°C) to +257°F (+125°C) |
Mounting Angle |
Straight |
Number of Rows |
1 Row |
Voltage Rating |
250 V |
Product No |
LZ7023Y-2.3-11 |
Size(L*W*H) |
47*22.1*21.5mm |
Number of Positions |
2 |
Gender |
Receptacle (Male) |
Pitch |
6.71 mm |
Connector Mounting Type |
Cable Mount / Free Hanging |
Termination Style |
Crimp |
Wire Gauge |
10-14 AWG |
Color |
Gray |
Attachment Hole Diameter |
2.5 mm |
Contact Current Rating (A) |
25 A |
Housing Material |
Polyamide (PA) |
Ingress Protection |
IP68 |
Locking Mechanism |
Integrated in Housing |
Material |
Plastic |
Operating Temperature |
-67°F (-55°C) to +257°F (+125°C) |
Mounting Angle |
Straight |
Number of Rows |
1 Row |
Voltage Rating |
200 V |
Product No |
LZ7023Y-2.3-21 |
Size(L*W*H) |
32*18.9*17.5mm |
Number of Positions |
2 |
Gender |
Plug (Female) |
Pitch |
6.71 mm |
Connector Mounting Type |
Cable Mount / Free Hanging |
Termination Style |
Crimp |
Wire Gauge |
10-14 AWG |
Color |
Gray |
Attachment Hole Diameter |
2.5 mm |
Contact Current Rating (A) |
25 A |
Housing Material |
Polyamide (PA) |
Ingress Protection |
IP68 |
Locking Mechanism |
Integrated in Housing |
Material |
Plastic |
Operating Temperature |
-67°F (-55°C) to +257°F (+125°C) |
Mounting Angle |
Straight |
Number of Rows |
1 Row |
Voltage Rating |
200 V |

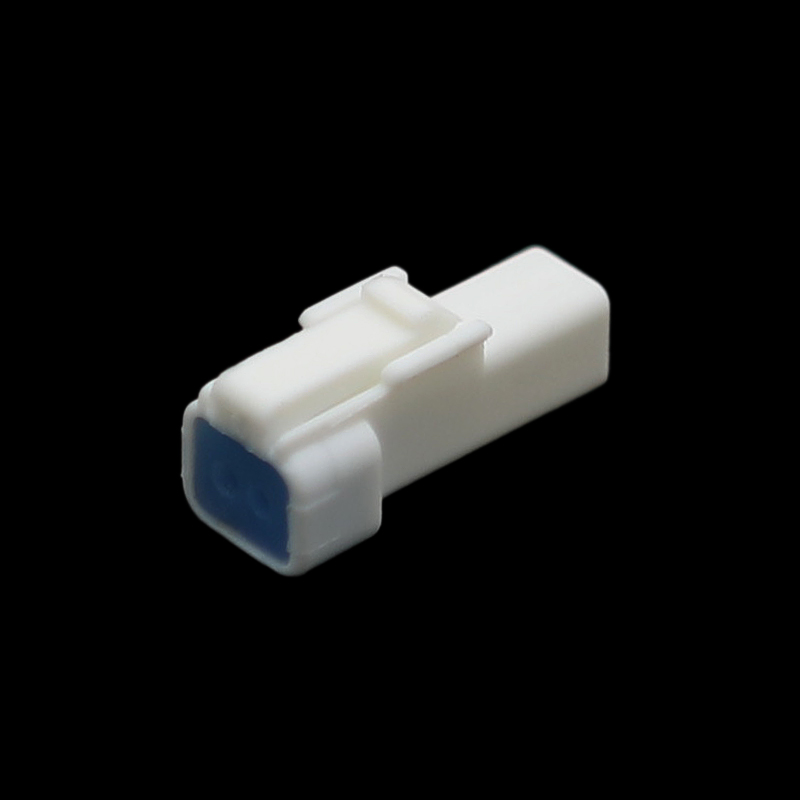

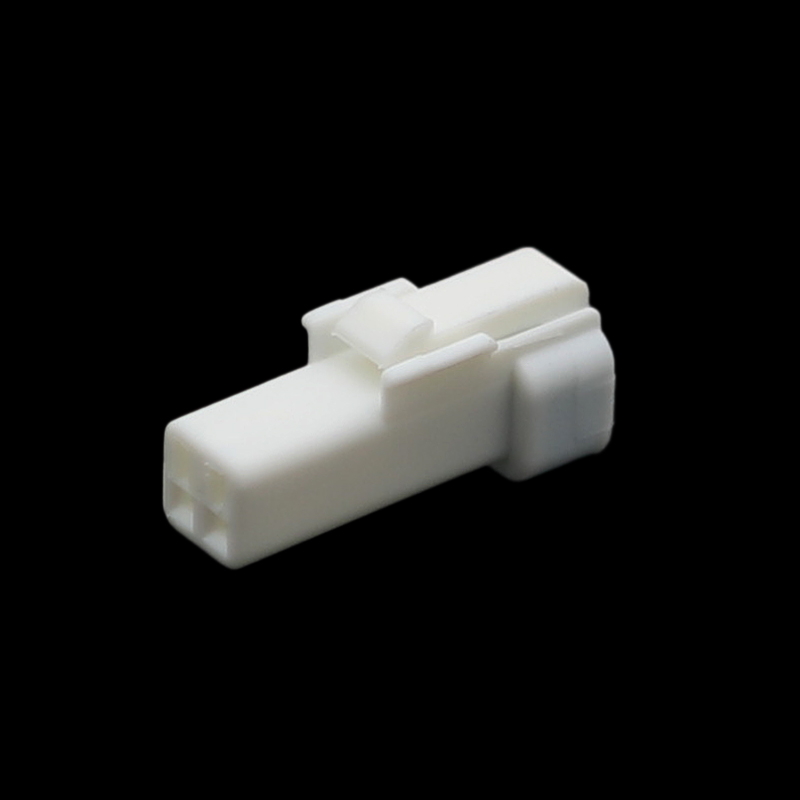

Type |
Receptacle (Male) |
Number of Positions |
2 |
Dimensions (L*W*H) |
19.8*7*8mm |
Pitch |
2 mm |
Installation style |
Cable Mount/Free Hanging |
Termination type |
Crimp |
Minimum value of the line gauge |
26 AWG |
The maximum value of the line gauge |
22 AWG |
Colour |
Natural |
Application |
Wire-to-Board |
Current rated value |
3 A |
Shell material |
Polybutylene Terephthalate (PBT) |
Maximum operating temperature |
+ 85 ° C |
Minimum operating temperature |
-55 ° C |
Installation Angle |
Straight |
Voltage rating |
100 VAC, 100 VDC |
Wire gauge |
26 AWG to 22 AWG |

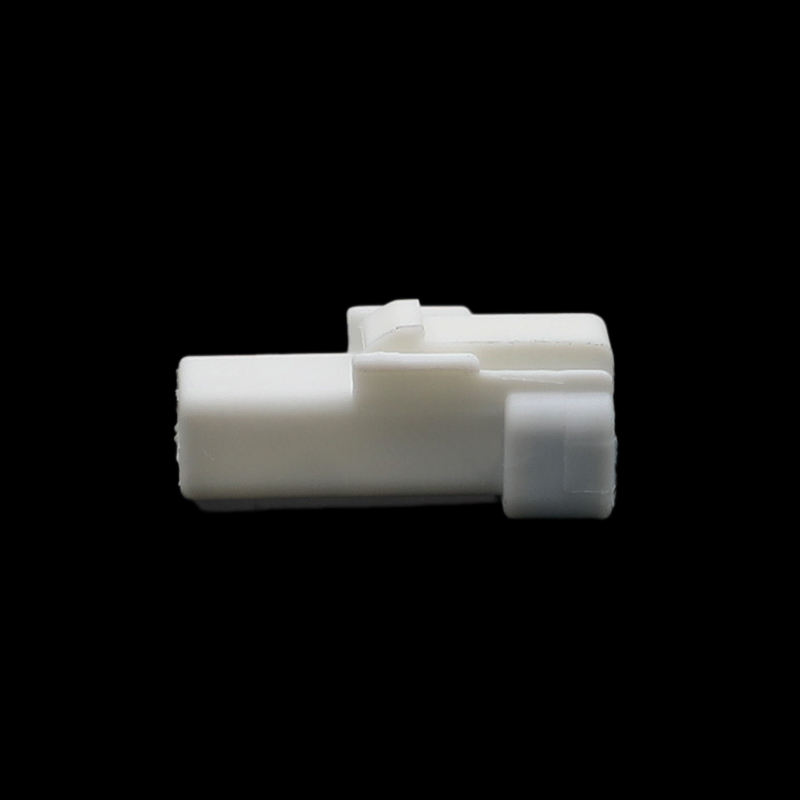

Type |
Receptacle (Male) |
Number of Positions |
2 |
Dimensions (L*W*H) |
26*7.1*8.2mm |
Pitch |
2 mm |
Installation style |
Cable Mount/Free Hanging |
Termination type |
Crimp |
Minimum value of the line gauge |
26 AWG |
The maximum value of the line gauge |
22 AWG |
Colour |
Natural |
Application |
Wire-to-Board |
Current rated value |
3 A |
Shell material |
Polybutylene Terephthalate (PBT) |
Maximum operating temperature |
+ 85 ° C |
Minimum operating temperature |
-55 ° C |
Installation Angle |
Straight |
Voltage rating |
100 VAC, 100 VDC |
Wire gauge |
26 AWG to 22 AWG |

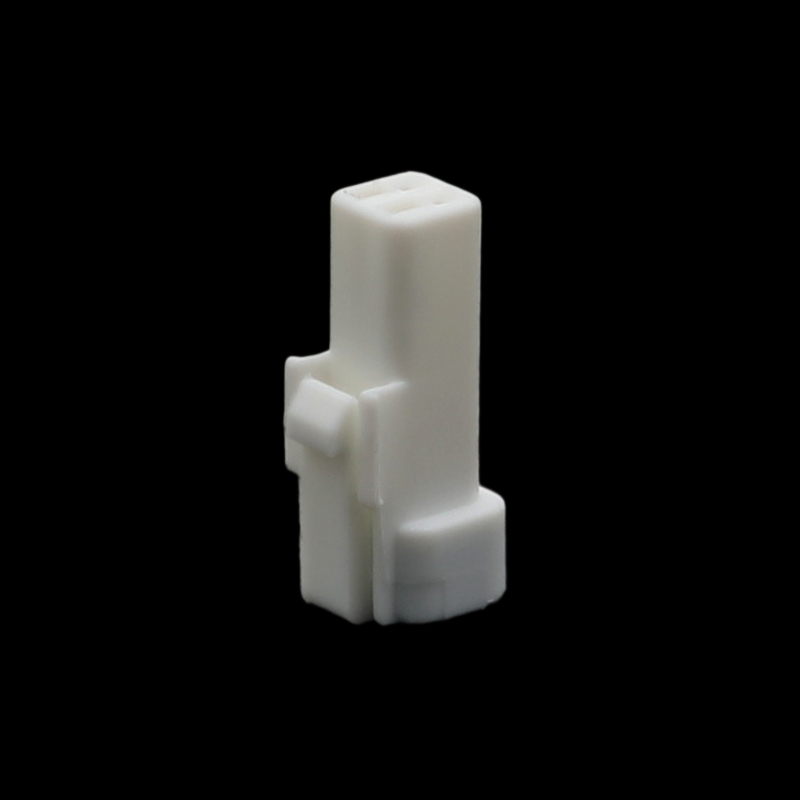

Type |
Plug (Female) |
Number of Positions |
2 |
Dimensions (L*W*H) |
16.6*6.8*7.15mm |
Pitch |
2 mm |
Installation style |
Cable Mount/Free Hanging |
Termination type |
Crimp |
Minimum value of the line gauge |
26 AWG |
The maximum value of the line gauge |
22 AWG |
Colour |
Natural |
Application |
Wire-to-Board |
Current rated value |
3 A |
Shell material |
Polybutylene Terephthalate (PBT) |
Maximum operating temperature |
+ 85 ° C |
Minimum operating temperature |
-55 ° C |
Installation Angle |
Straight |
Voltage rating |
100 VAC, 100 VDC |
Wire gauge |
26 AWG to 22 AWG |

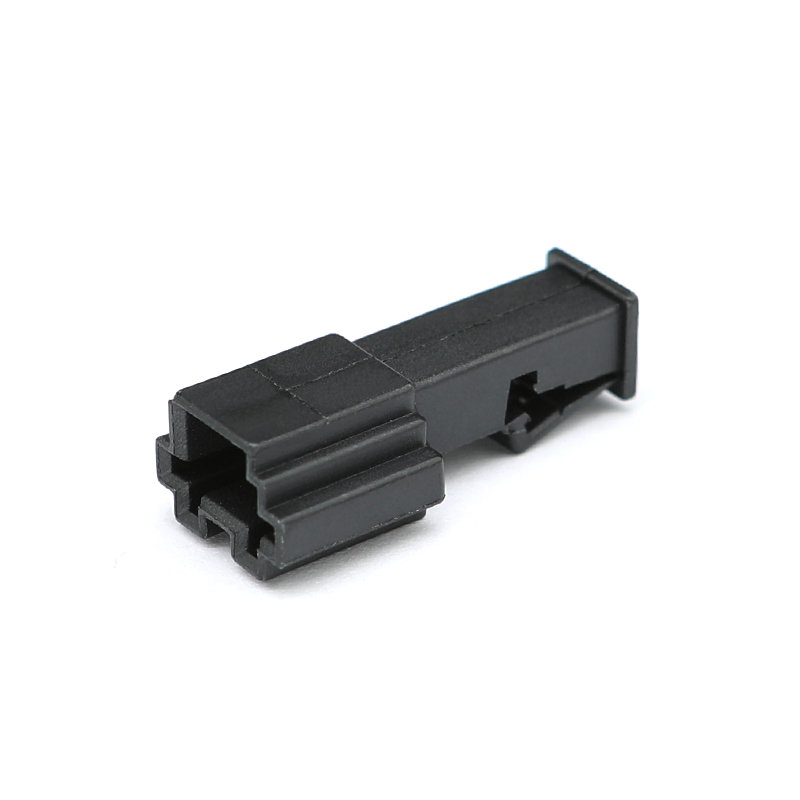

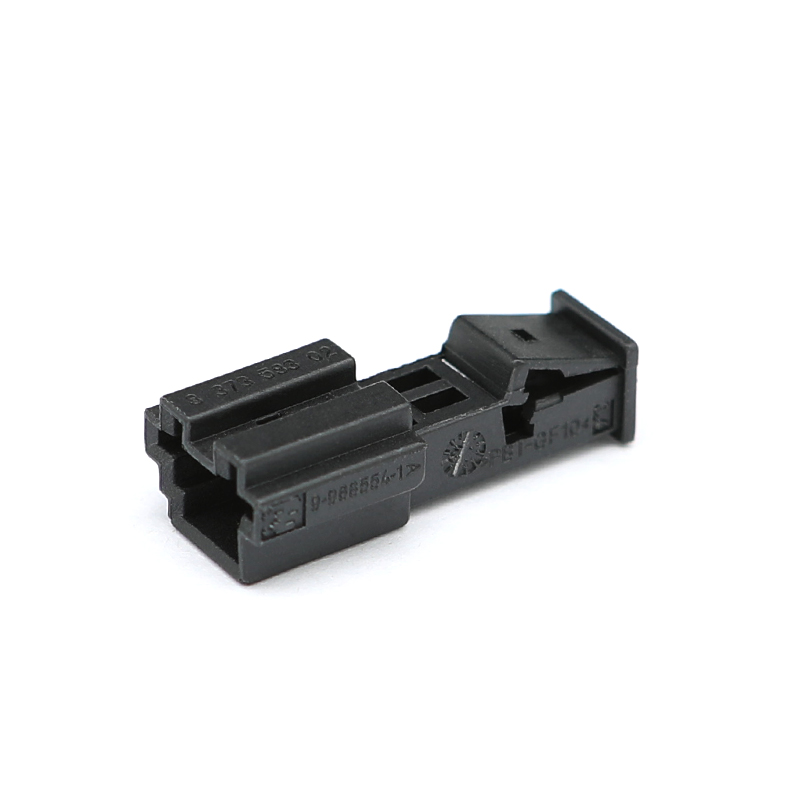

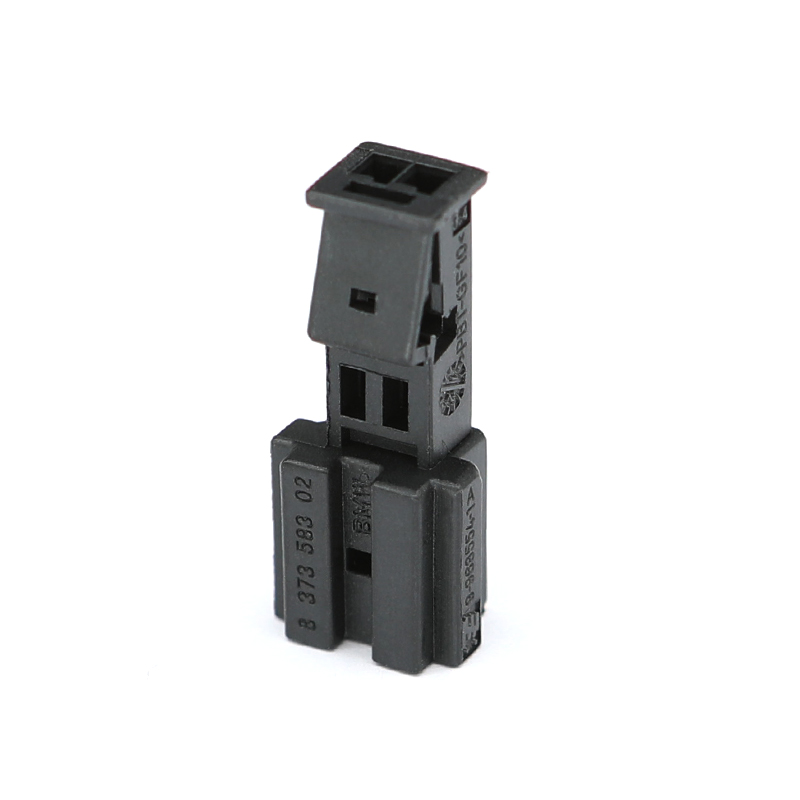

Type |
Receptacle (Male) |
Number of Positions |
2 |
Dimensions (L*W*H) |
26.9*11.5*8.1mm |
Pitch |
2.54mm |
Installation style |
Cable Mount/Free Hanging |
Termination type |
Crimp |
Minimum value of the line gauge |
24 AWG |
Maximum value of the line gauge |
18 AWG |
Colour |
Black |
Shell material |
Polybutylene Terephthalate (PBT) |
Lock mechanism |
On the terminal |
Maximum operating temperature |
+ 80 ° C |
Minimum operating temperature |
-40 ° C |
Installation Angle |
Straight |
Row number |
1 Row |
Application |
Wire to Wire |
Linear gauge range |
18 AWG to 24 AWG |
Type |
Plug (Female) |
Number of Positions |
8 |
Dimensions (L*W*H) |
17*7.9*6.5mm |
Pitch |
2.54mm |
Installation style |
Cable Mount/Free Hanging |
Termination type |
Crimp |
Minimum value of the line gauge |
24 AWG |
Maximum value of the line gauge |
18 AWG |
Colour |
Black |
Shell material |
Polybutylene Terephthalate (PBT) |
Lock mechanism |
On the terminal |
Maximum operating temperature |
+ 80 ° C |
Minimum operating temperature |
-40 ° C |
Installation Angle |
Straight |
Row number |
1 Row |
Application |
Wire to Wire |
Linear gauge range |
18 AWG to 24 AWG |

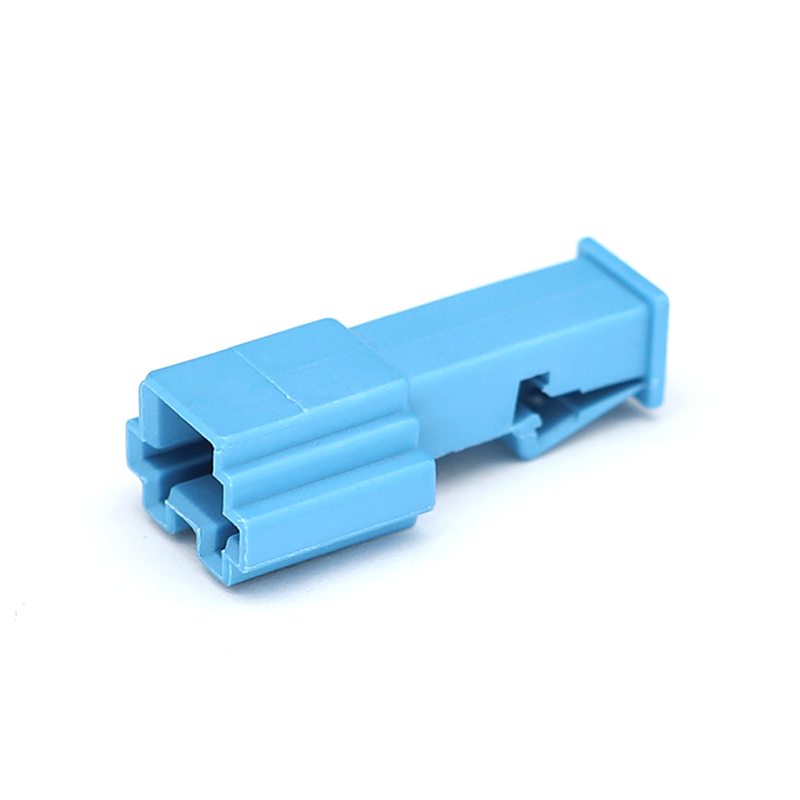

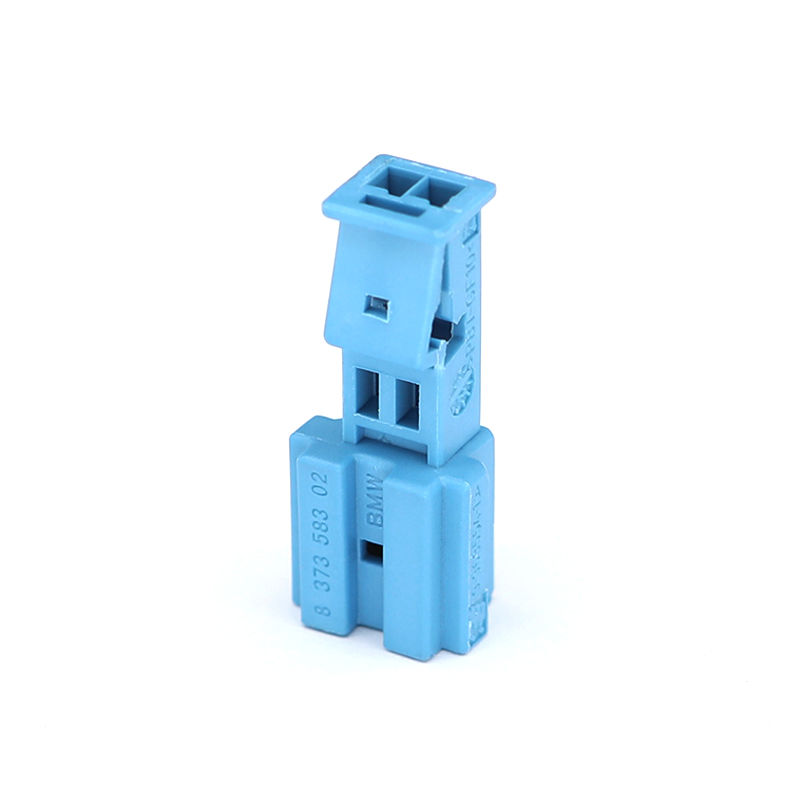

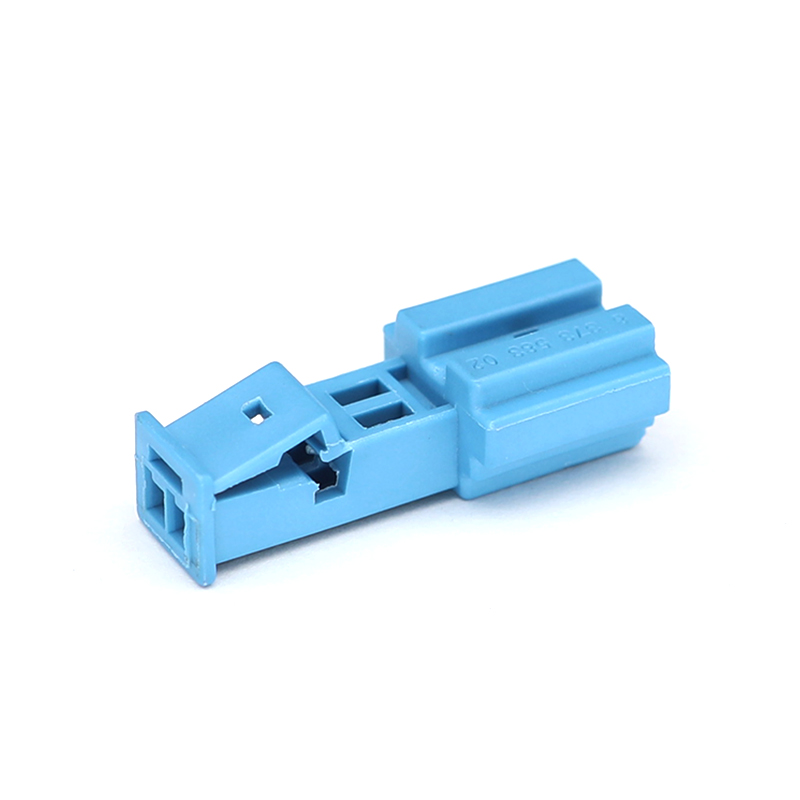

Type |
Receptacle (Male) |
Number of Positions |
2 |
Dimensions (L*W*H) |
26.9*11.5*8.1mm |
Pitch |
2.54mm |
Installation style |
Cable Mount/Free Hanging |
Termination type |
Crimp |
Minimum value of the line gauge |
24 AWG |
Maximum value of the line gauge |
18 AWG |
Colour |
Blue |
Shell material |
Polybutylene Terephthalate (PBT) |
Lock mechanism |
On the terminal |
Maximum operating temperature |
+ 80 ° C |
Minimum operating temperature |
-40 ° C |
Installation Angle |
Straight |
Row number |
1 Row |
Application |
Wire to Wire |
Linear gauge range |
18 AWG to 24 AWG |
Our 2 Pin Connector is a vital component in electrical systems, facilitating simple yet secure connections for various applications. Widely employed in industries such as automotive, new energy vehicles, and beyond, these connectors ensure reliable performance in powering essential components like lights and sensors.
Features:
Simple Design: The 2 Pin Connector boasts a straightforward design, making it easy to install and use in diverse settings.
Secure Connection: With precise engineering, these connectors offer a secure and stable connection, reducing the risk of electrical failure or disconnection.
Durable Construction: Constructed from high-quality materials, our connectors are built to withstand harsh environmental conditions, ensuring longevity and reliability.
Versatile Compatibility: Compatible with a range of devices, from simple switches to sophisticated sensors, our connectors offer versatility across various applications.
Applications:
Our 2 Pin Connector finds widespread usage in numerous industries and applications, including but not limited to:
Automotive: Integral to vehicle electrical systems, these connectors facilitate connections for lighting systems, sensors, and more.
Motorcycles: From ignition systems to lighting, our connectors play a crucial role in powering essential components in motorcycles.
New Energy Vehicles: As the automotive industry shifts towards sustainable solutions, our connectors support the electrical infrastructure of new energy vehicles, ensuring efficient power distribution.
Consumer Electronics: From small appliances to larger devices, our connectors serve as a reliable interface for power transfer, enabling seamless operation in consumer electronics products.
Industrial Automation: In industrial settings, where precision and reliability are paramount, our connectors play a crucial role in connecting sensors, actuators, and control systems, ensuring efficient and safe automation processes.
Renewable Energy Systems: As the demand for renewable energy sources grows, our connectors facilitate the integration of solar panels, wind turbines, and other renewable energy systems, contributing to the expansion of sustainable energy infrastructure.
Benefits:
Reliability: With a focus on quality and precision, our connectors deliver reliable performance, reducing the risk of electrical malfunctions or downtime.
Ease of Use: Designed for simplicity, our connectors are user-friendly, allowing for quick and hassle-free installation.
Cost-Effectiveness: By providing durable and dependable connectivity solutions, our connectors contribute to cost savings by reducing maintenance and replacement expenses.
Safety: With secure connections and robust construction, our connectors prioritize safety, mitigating the risk of electrical hazards.
Customer Satisfaction:
At our core, we prioritize customer satisfaction, striving to meet and exceed the expectations of our clients across various industries. With a commitment to quality, reliability, and innovation, we ensure that our 2 Pin Connector not only meets the current needs of our customers but also anticipates future demands and technological advancements. Our dedication to continuous improvement and customer-centric approach sets us apart as a trusted partner in electrical connectivity solutions.
In conclusion, our 2 Pin Connector stands as a dependable solution for electrical connectivity in a variety of applications. With its simple yet effective design, versatile compatibility, and robust construction, it ensures reliable performance and safety in critical electrical systems. Whether used in automotive, motorcycle, or new energy vehicle applications, our connectors deliver the quality and reliability that our customers demand. Trust in our 2 Pin Connector for your electrical connection needs, and experience seamless performance and peace of mind.
Wenzhou Lizone Connector Co., Ltd. is China 2 Pin Connector manufacturers and custom 2 Pin Connector factory, located in Yueqing City, Zhejiang Province, is the city with the earliest domestic market economy and the dynamic economic development. It is close to 104 National Highway and Yongtaiwen Expressway, Wenzhou Bridge. The North White Elephant exit is 5 kilometers away, and it is about 25 kilometers away from Wenzhou Airport and the railway station. The traffic is very convenient.
The company specializes in the production of various automotive, motorcycle electrical circuit connectors, connectors, connecting terminals, fuse boxes, fuses, wiring harnesses, lamp holders, with new product development and mold precision manufacturing for 20 years and with many domestic automotive wiring harnesses Factory supporting cooperation.
